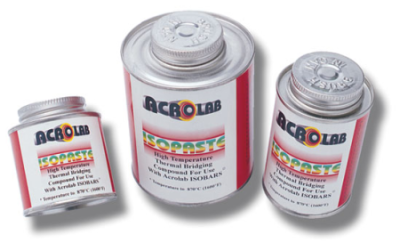

Isopaste is a high-temperature thermal bridging compound used in Acrolab's Isoplatens and Heat Transfer Tools to act as a heat conductor in the Isobar® Heat Pipe channels. It comes in three stock sizes: 125g, 250g, and 500g cans. Larger quantities can be arranged with your Acrolab Engineering Sales representative.
Isobar® Heat Pipe Hole Drilling Specifications for Paste Installation
Diameter |
Drill
[millimetres] |
Tolerance High
[millimetres] |
Tolerance Low
[millimetres] |
| 2mm |
2.00
|
+0.03
|
-0.03
|
| 3mm |
3.07
|
+0.03
|
-0.03
|
| 4mm |
4.04
|
+0.03
|
-0.03
|
| 5mm |
5.08
|
+0.03
|
-0.03
|
| 6mm |
6.05
|
+0.03
|
-0.03
|
| 8mm |
8.05
|
+0.03
|
-0.03
|
| 10mm |
10.01
|
+0.03
|
-0.03
|
| 12mm |
11.96
|
+0.03
|
-0.03
|
| 15mm |
14.96
|
+0.03
|
-0.03
|
| 16mm |
16.08
|
+0.03
|
-0.03
|
| 18mm |
17.98
|
+0.03
|
-0.03
|
| 20mm |
19.94
|
+0.03
|
-0.03
|
| 25mm |
24.94
|
+0.03
|
-0.03
|
| 30mm |
29.95
|
+0.03
|
-0.03
|
Diameter |
Drill
[inches] |
Tolerance High
[inches] |
Tolerance Low
[inches] |
| 3/32" |
0.096
|
+0.001
|
-0.001
|
| 1/8" |
0.127
|
+0.001
|
-0.001
|
| 5/32" |
0.157
|
+0.001
|
-0.001
|
| 3/16" |
0.189
|
+0.001
|
-0.001
|
| 7/32" |
0.219
|
+0.001
|
-0.001
|
| 1/4" |
0.252
|
+0.001
|
-0.001
|
| 5/16" |
0.314
|
+0.001
|
-0.001
|
| 3/8" |
0.377
|
+0.001
|
-0.001
|
| 1/2" |
0.502
|
+0.001
|
-0.001
|
| 5/8" |
0.627
|
+0.001
|
-0.001
|
| 3/4" |
0.752
|
+0.001
|
-0.001
|
Isobar is a registered trade mark of Acrolab Ltd.
|
